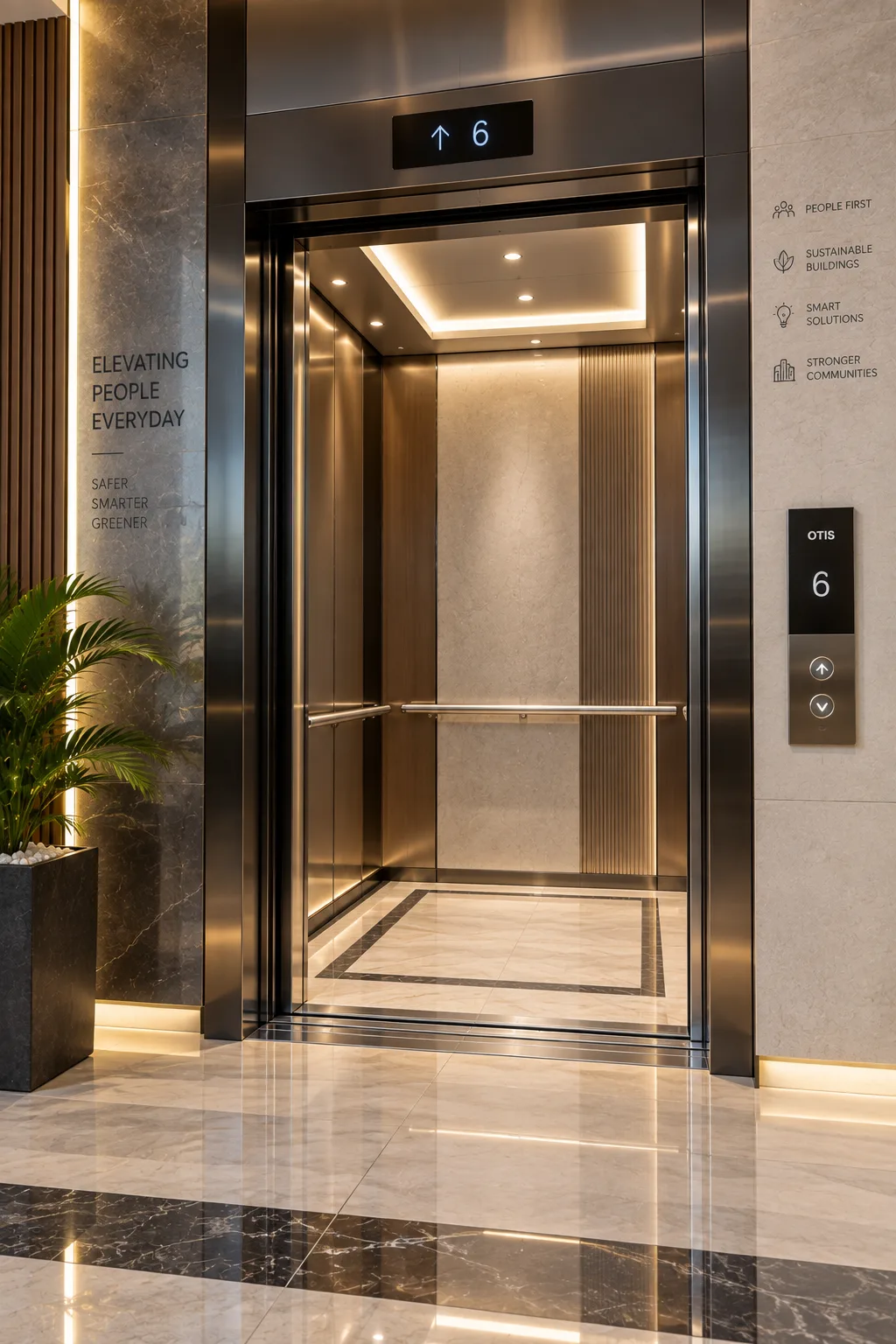

Passenger Elevator – Auto Door
The standard for offices, apartments and hotels.
Photos
About this lift
Automatic-door passenger lifts are the workhorse of modern buildings. Doors open and close on their own, traffic flows faster, and the cabin can be finished from hairline stainless steel to mirror-etched panels.
- Door-edge sensors that stop and reopen on contact
- Group control for banks of lifts
- Automatic rescue device that brings the car to the nearest floor on power loss
- Wide choice of cabin, panel and floor finishes
Specifications
| Capacity | 6 – 20 persons |
|---|---|
| Speed | 1.0 – 2.5 m/s |
| Travel | Up to G+20 |
| Door type | Automatic centre-opening or telescopic sliding |
| Cabin finish | Stainless steel (hairline, mirror or etched), glass options |
| Drive | Gearless or geared traction with VVVF drive |
| Shaft | Standard concrete or brick shaft |
| Safety features | Door edge sensors, overload alarm, ARD, emergency light and alarm |
Indicative ranges for this lift type. Final capacity, speed and dimensions are confirmed in writing after a site survey.

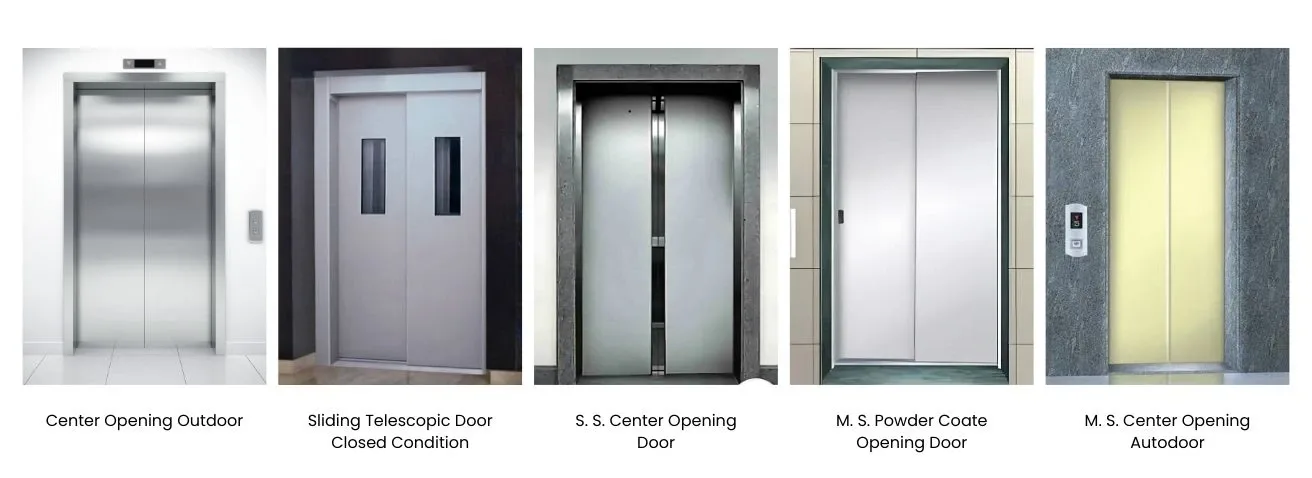

Automatic door types
Common automatic door styles and finishes, from centre-opening stainless steel to telescopic and powder-coated doors.
Where it fits
- Apartment towers
- Offices and IT parks
- Hotels
- Commercial complexes
See door designsSee motor optionsCompare with other lift types
