Capsule Elevators
A glass cabin that turns the ride into the view.
- Capacity
- 6 – 13 persons
- Speed
- 0.5 – 1.75 m/s
View detailsRequest quote
Passenger Elevator – Manual Door
Proven, economical lifts for low and mid-rise buildings.
Photos
About this lift
Manual-door lifts use a swing landing door with a collapsible or swing car gate. They cost less to buy and to service, and remain a common, dependable choice in low and mid-rise buildings across India.
- Lower purchase cost and simpler maintenance
- Every landing door is interlocked and cannot open away from the car
- Straightforward to service with locally available parts
- Option to upgrade to automatic doors later
Specifications
| Capacity | 4 – 13 persons |
|---|---|
| Speed | 0.5 – 1.0 m/s |
| Travel | Up to G+7 |
| Door type | Manual swing landing door with collapsible or swing car gate |
| Cabin finish | Powder-coated MS or stainless steel panels |
| Drive | Geared traction with VVVF or two-speed control |
| Shaft | Standard concrete or brick shaft |
| Safety features | Door interlocks, safety gear, overspeed governor, alarm |
Indicative ranges for this lift type. Final capacity, speed and dimensions are confirmed in writing after a site survey.

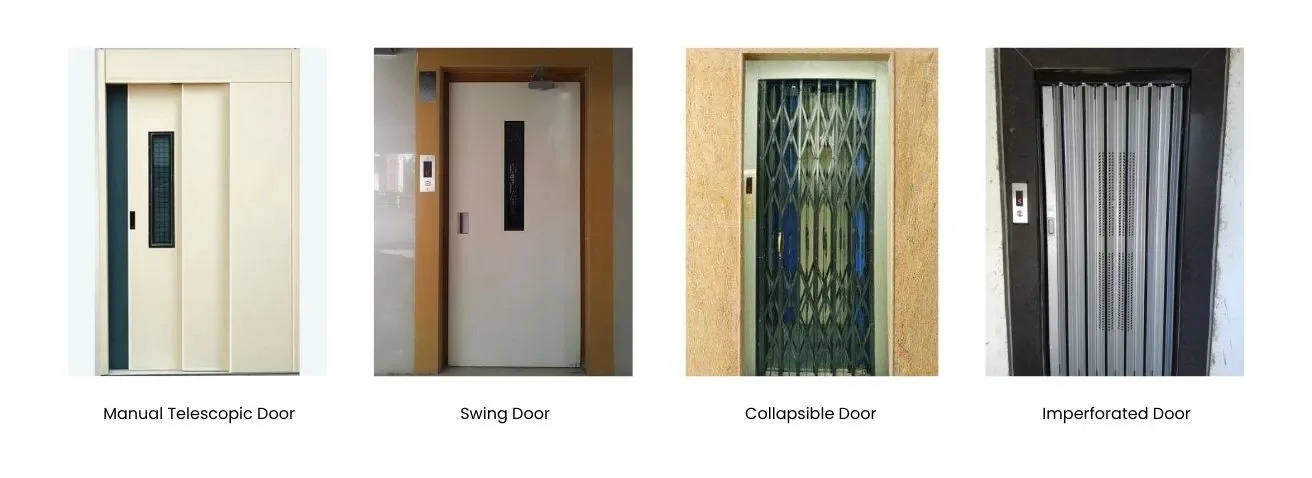

Manual door types
Manual telescopic, swing, collapsible and imperforated doors. The right choice depends on the building and budget.
Where it fits
- Low-rise apartments
- Small offices and clinics
- Schools and institutes
- Budget-led projects
See door designsSee motor optionsCompare with other lift types
